PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

1130 | 35 | 70

The PALADIO TRACK 35 | DIRECT with its integrated 48 V DALI power track offers a high degree of flexibility and design freedom. Specially developed linear lighting elements and selected luminaires from the SATTLER portfolio can be easily combined to create high-performance lighting systems that also meet the highest design requirements.



Free lighting design with PALADIO TRACK 35 | Light Elements:

Many movable spots and pendant luminaires in the SATTLER portfolio, such as FINO SPOT 2, FINO PENDANT, PALITO, EVOLUTION SPOT, AVVENI SPOT and AVVENI PENDANT 1, can easily be freely positioned using a magnetic click adapter on the PALADIO TRACK luminaire profile.

Thanks to its diversity, it is also very popular in private homes.

The PALADIO TRACK 35 as a single linear luminaire is available in 7 lengths from 1.1 m to 3.9 m as a pendant luminaire. 35 mm slender and 70 mm high aluminium profile with high-quality brushed and anodised surface in various colours. PALADIO WOOD: PALADIO single luminaires are also available with selected, high-quality wood veneers.

As with all PALADIOs, here too: Pendant, surface-mounted and recessed luminaires, the PALADIO TRACK 35 for plasterboard ceilings is also available as a trimless recessed version.

Practical added value of the PALADIO: aluminium profile with integrated diffuser and technical unit integrated into the luminaire itself. This eliminates the need for a separate canopy or technical unit, which must be in or on the ceiling.



A further variant:

PALADIO TRACK 35 | DIRECT / INDIRECT: Additional ceiling illumination is provided by opal diffusers arranged in sections on the indirect side of the luminaire. Optics: opal diffusers integrated positively into aluminium housing, CRI>90.

The PALADIO can be used as an individual single luminaire or extended to create complex lighting structures, as a system luminaire using PALADIO CONNECT connecting elements.

To the complete PALADIO series

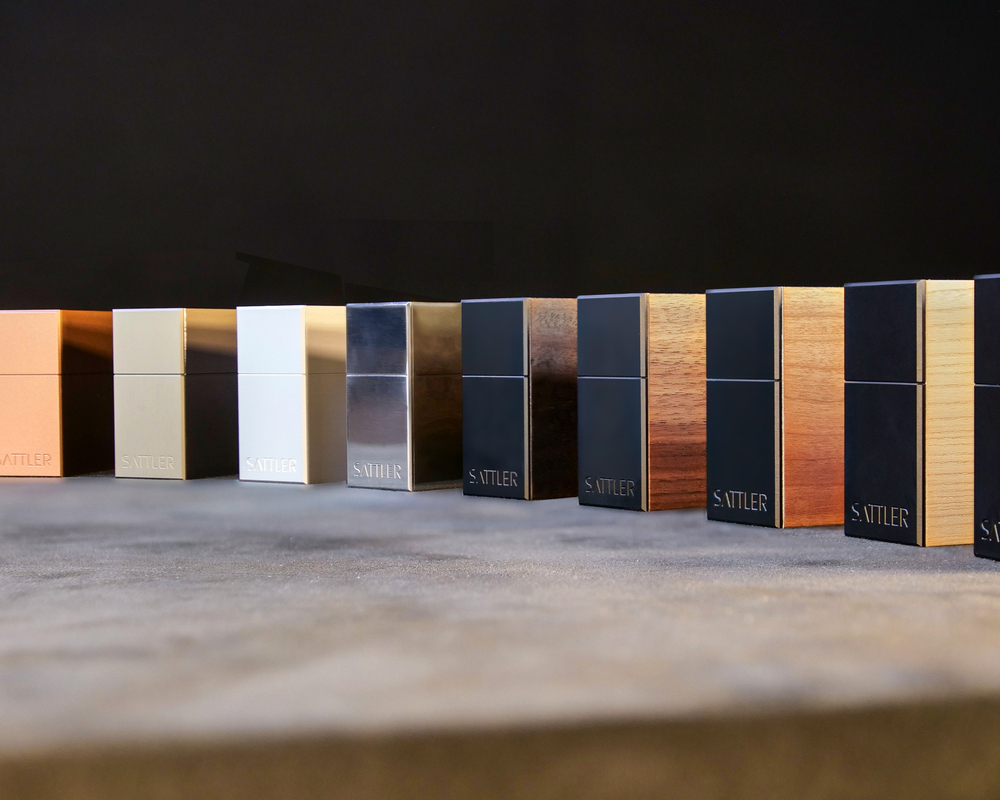

Nine PALADIO linear luminaires on a table with different surfaces, in particular the premium wood surfaces.

PALADIO Premium surfaces - wood veneer

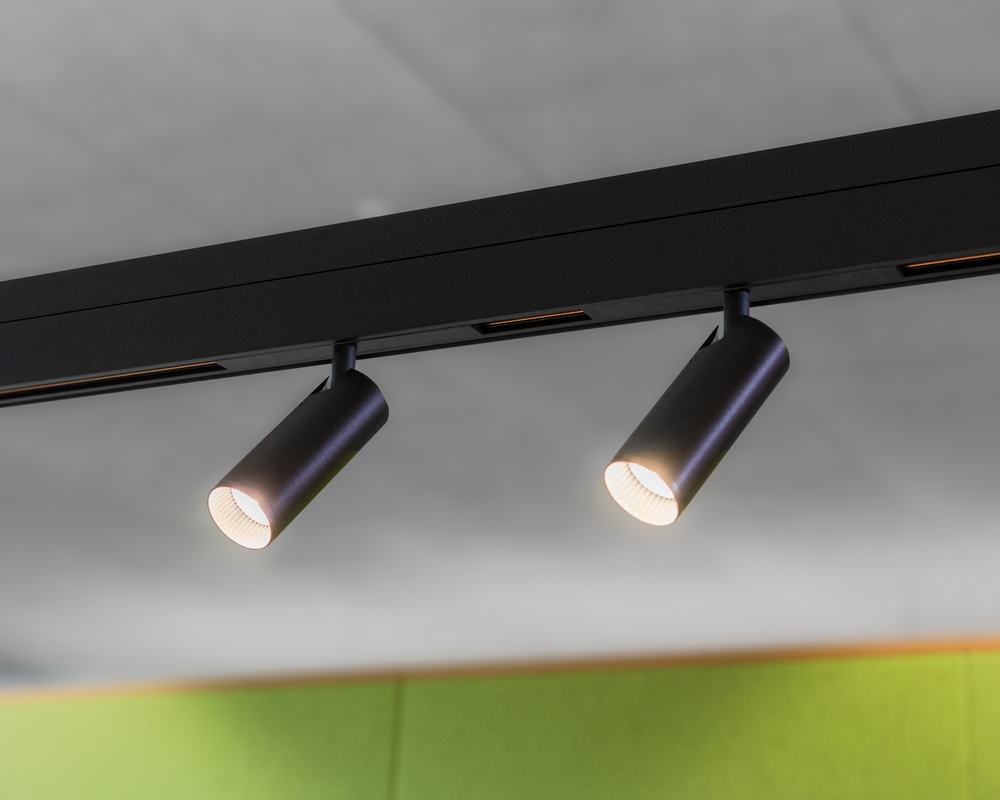

Section of a black linear track luminaire PALADIO TRACK with two inserted, movable, black, cylindrical spots (EVOLUTION SPOT S), which shine obliquely forwards, in front of a green felt wall.

Movable cylindrical EVOLUTION SPOT S as a lighting element for PALADIO TRACK

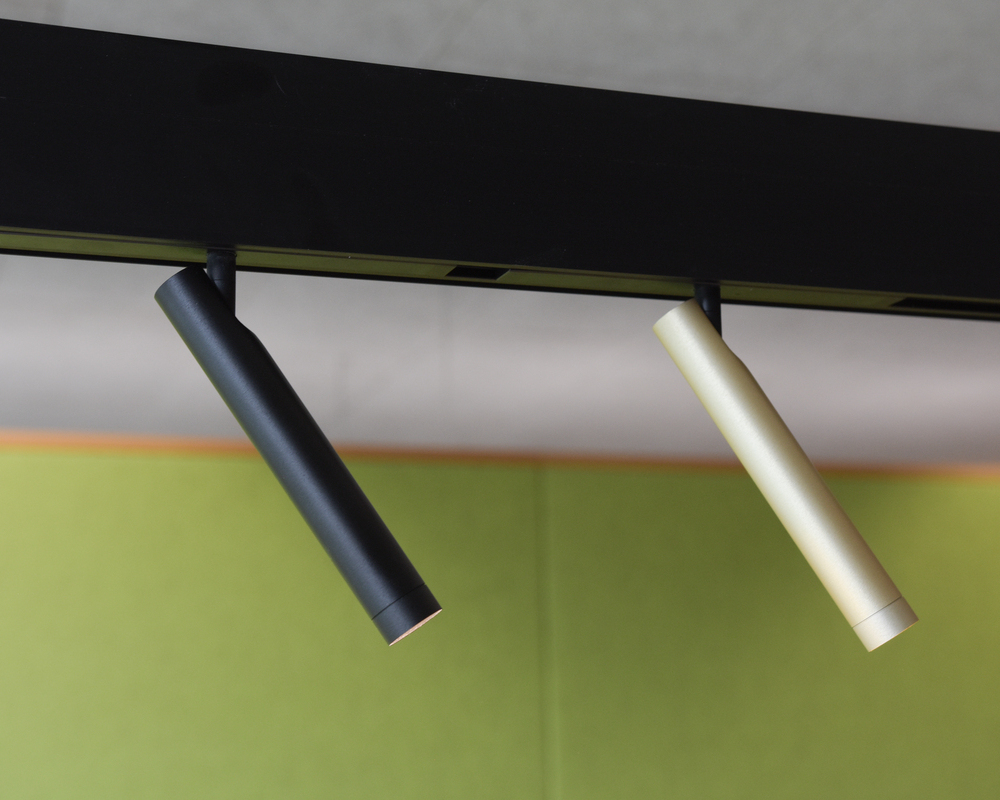

In front of a green felt wall: section of a black linear track luminaire PALADIO TRACK with two inserted movable, slim cylindrical spots (FINO SPOT 2) in black and champagne gold, which shine obliquely forwards to the right.

Movable slim cylindrical FINO SPOT 2 as a lighting element for PALADIO TRACK

Shows a section of a round, flat, movable luminaire, AVVENI SPOT, inserted in a track from behind.

Flat, round, movable AVVENI SPOT as a lighting element for PALADIO TRACK

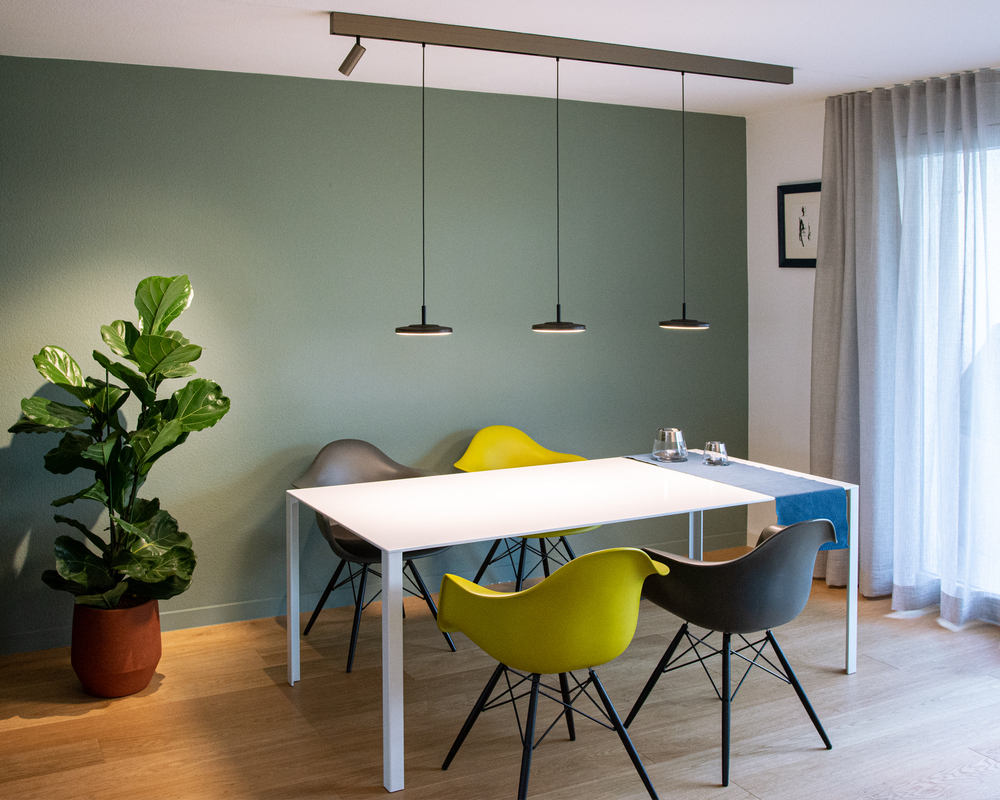

Modern dining room with white rectangular table and 4 colourful chairs around it. A track is attached to the ceiling above the table, into which a cylindrical spotlight (EVOLUTION SPOT S) is inserted on the left-hand edge, which illuminates the plant in the left-hand corner of the room, and 3 black pendant luminaires with round, flat lamp heads (AVVENI PENDANT 1), which illuminate the table.

Lighting Element pendant luminaire AVVENI PENDANT 1 for PALADIO TRACK

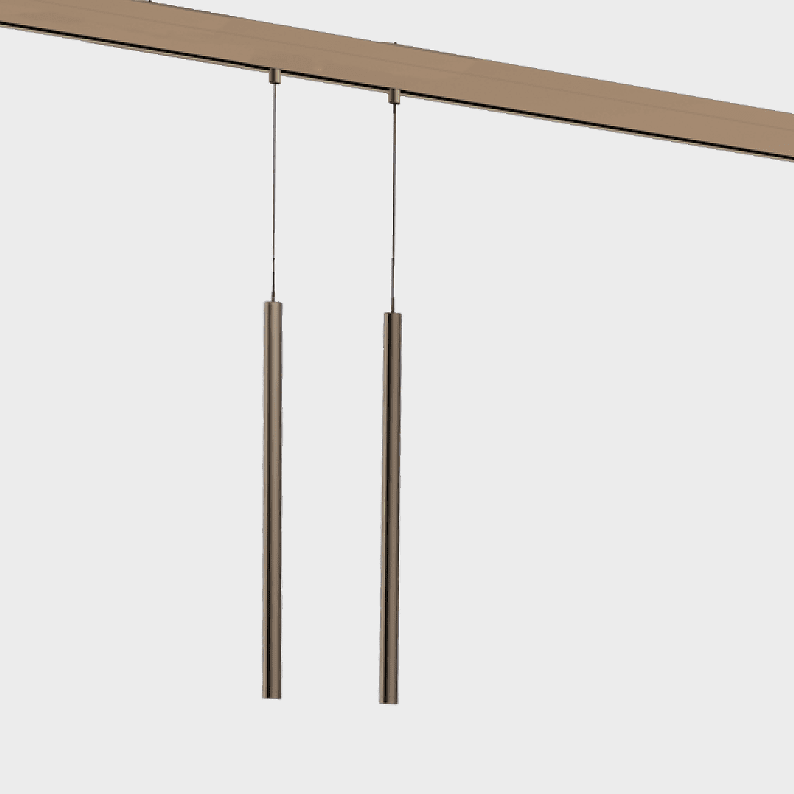

Section of two bronze-coloured, slender cylindrical FINO PENDANT pendant rod luminaires as a lighting element in a bronze-coloured PALADIO TRACK track.

FINO PENDANT cylindrical pendant rod luminaire as a lighting element for PALADIO TRACK

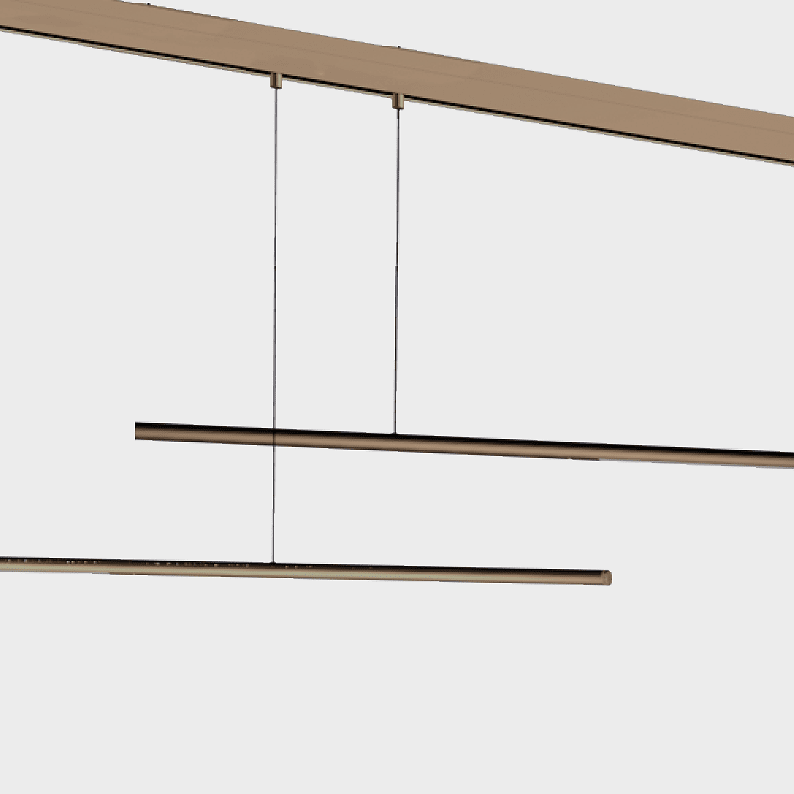

Section of two bronze-coloured slimline cylindrical horizontal rod pendant luminaires PALITO PENDANT as a lighting element in a bronze-coloured track PALADIO TRACK.

Cylindrical horizontal rod pendant luminaire PALITO PENDANT as a lighting element for PALADIO TRACK

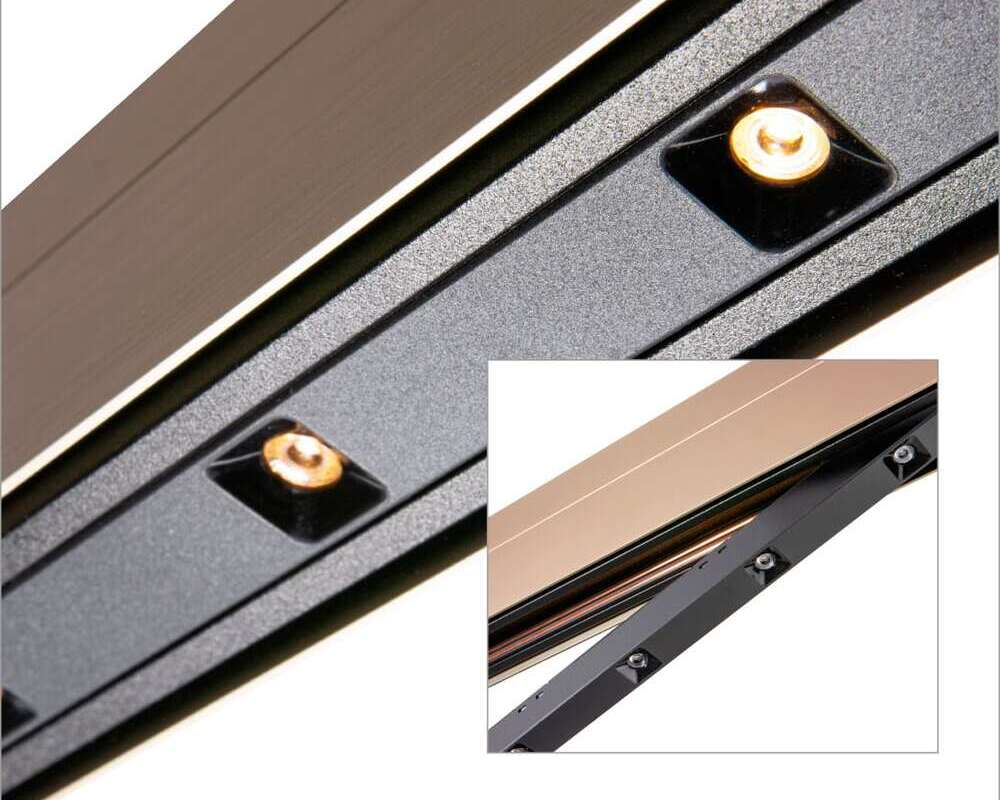

Close-up of PALADIO TRACK track light in bronze with a light insert with small lenses, with another small picture of it placed on top, with the light insert still clicked out.

Linear lens light element for PALADIO TRACK

Product Images

Kitchen high table with blue armchair stools around it, surrounded by cylindrical pendant lights, FINO PENDANT, suspended from a linear element, PALADIO TRACK.

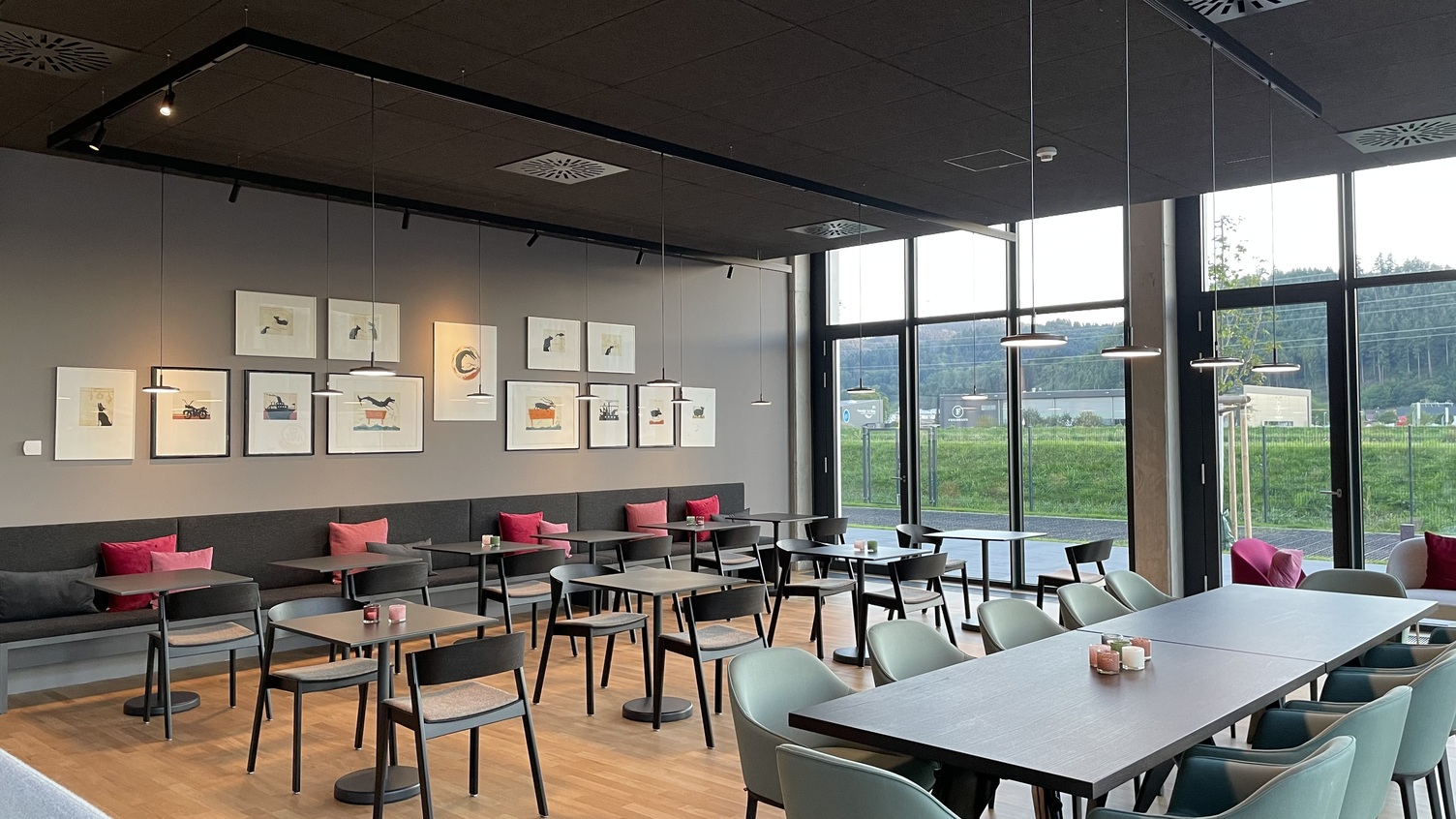

Cafeteria area at Streit with modern seating and Sattler's Avveni Pendant lights and Evolution Spot are each used in Paladio Track system lights.
Red brick vaulted ceiling with linear track lighting, PALADIO TRACK, and lighting elements, flat round AVVENI SPOT light heads and linear lighting elements with lens technology.
Hallway with parquet flooring leading to an office. The hallway is illuminated by a linear PALADIO TRACK surface-mounted luminaire in black, which houses several round, flat AVVENI SPOT heads that are aligned in different directions and illuminate the hallway.
White breakfast kitchen unit with a column in the middle. Above it, an add-on light with three EVOLUTION SPOTs, a cylindrical, movable spotlight and two narrow cylindrical pendant lights on the other side.
White ceiling with a linear surface-mounted luminaire, which incorporates various luminaires: two cylindrical pendant lights, FINO PENDANT, and three cylindrical movable spotlights, EVOLUTION SPOT.

Related Products

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

1,410 mm

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

2,250 mm

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

1,690 mm

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

2,810 mm

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

3,370 mm

PALADIO TRACK 35

DIRECT | SINGLE LUMINAIRE

3,930 mm

PALADIO TRACK 35

DIRECT / INDIRECT | SINGLE LUMINAIRE

1,690 mm

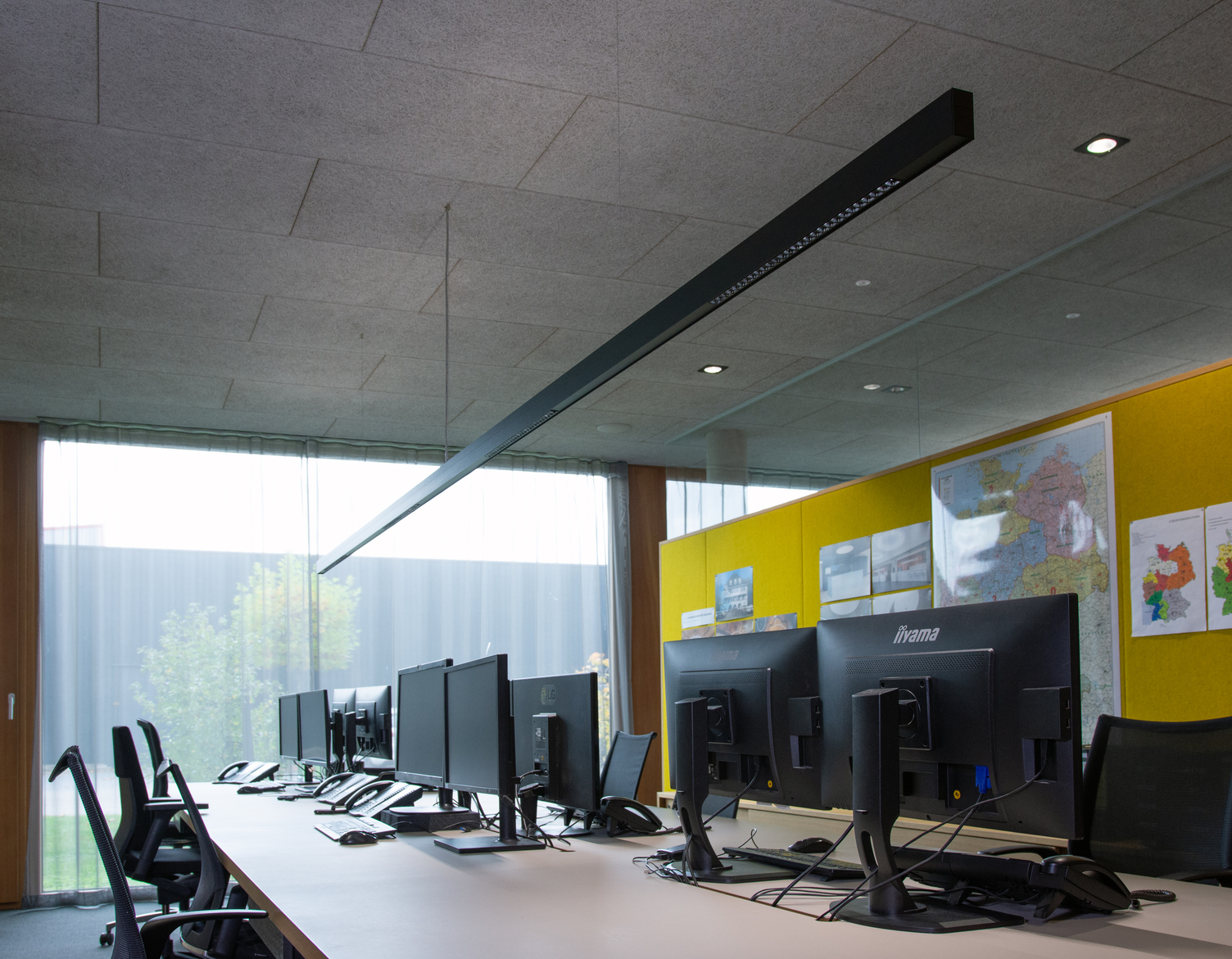

A row of tables 5 metres long with computer workstations on both sides stands in front of a yellow felt back wall. Above it, a long black PALADIO 35 LENS linear luminaire with direct and indirect lighting is suspended from the ceiling.

PALADIO LENS 35

DIRECT | SINGLE LUMINAIRE

1,130 mm

Reception desk of a medical practice with a view from the workstations to the corridor, with glare-free PALADIO LENS linear luminaires above the monitor workstations and BE spotlights on the ceiling by the neighbouring cabinets.

PALADIO LENS 35

DIRECT / INDIRECT | SINGLE LUMINAIRE

1,130 mm

PALADIO PRISM 35

DIRECT | SINGLE LUMINAIRE

1,410 mm

PALADIO PRISM 35

DIRECT / INDIRECT | SINGLE LUMINAIRE

1,130 mm

PALADIO LENS 54

DIRECT | SINGLE LUMINAIRE

1,410 mm

PALADIO LENS 54

DIRECT / INDIRECT

1,410 mm

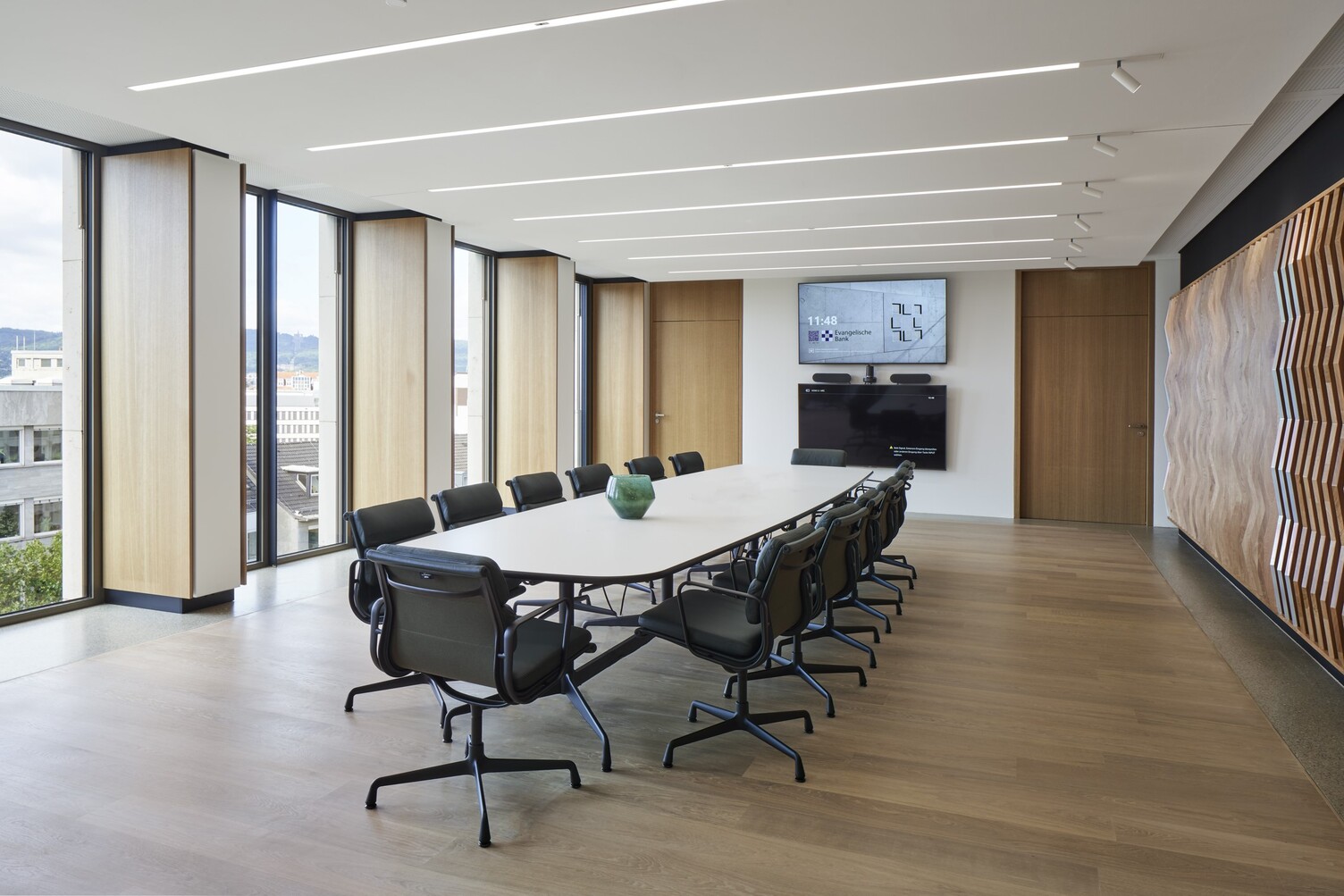

EVB conference room with an oval meeting table and office chairs around it in the centre, windows around the outside provide a view of the outside, linear recessed luminaires (PALADIO) are visible in the white ceiling, and cylindrical spotlights (EVOLUTION SPOT) are installed at the end of the luminaires on one side of the wall.

PALADIO PRISM 54

DIRECT | SINGLE LUMINAIRE

1,130 mm

PALADIO PRISM 54

DIRECT / INDIRECT | SINGLE LUMINAIRE

1,130 mm

PALADIO WALL

DIREC / INDIRECT

1,410 mm

PALADIO FLOOR

1,333 mm

PALADIO DOWNLIGHT

300 mm

3 round, flat black lamp heads of the AVVENI Pendant 1 pendant luminaires above a white rectangular dining table with colourful chairs in front of a green wall.

AVVENI PENDANT 1

196 mm

FINO

PENDANT

1,550 mm

A private dining room with a green-painted wall, in front of which stands a white dining table with colourful shell chairs. Above the table hangs a linear track light fitted to the ceiling, the PALADIO TRACK 35 DIRECT, which in turn is fitted with three vertical, cylindrical pendant lights, the FINO PENDANT, each 60 cm long.

FINO

PENDANT

600 mm

FINO

PENDANT

800 mm

FIO

SINGLE

40 mm

Kitchen lamps. Modern private open kitchen with wooden flooring, modern furniture, kitchen cabinets and kitchen island in the centre are white with black elements. Above the freestanding kitchen island are two cylindrical, horizontal PALITO pendant lights.

PALITO

1,240 mm

Colourful waiting lounge at Heim Infrastrukturbau with a green wall in front of which cylindrical pendant luminaires (TIA) are suspended and a light track system with spotlights on the ceiling.

TIA

42 mm

EVOLUTION SPOT

S

110 mm

Recessed power track (PALADIO TRACK) with two FINO SPOT 2 movable cylindrical spotlights, one in white and one in silver.

FINO SPOT 2

165 mm

Realised Projects

TINY HOUSE EnBW

TINY HOUSE EnBW

Stuttgart

to the project

  • Designer

  • SATTLER

  • Product Type

  • pendant luminaires
  • Surface-mounted and recessed luminaires

Light Colours

  • no indirect LED:

Dimming

  • DALI
  • CASAMBI

Colours

  • Surface-mounted junction box from SATTLER in silver anodised silver brush. anod.
  • Surface-mounted junction box from SATTLER in black anodised black brush. anod.
  • Surface-mounted junction box from SATTLER in champagne gold champagne-gold, brush. anod.
  • Surface-mounted junction box from SATTLER in anodised bronze bronze, brush. anod.

product.infos.diffuser

  • track system
  • Without

Power supply cable

Mounting version

  • Schematic drawing of a linear luminaire viewed from the end, in this case the PALADIO. The luminaire is split down the middle; the light-emitting surface is marked in yellow at the bottom, and there is a pink rectangle in the upper part of the luminaire representing the internal power supply unit. A suspension cable runs from the upper part of the luminaire (near the ceiling) down to the ceiling, and a cable runs into the ceiling. Outside the image is a 0A. Translated with DeepL.com (free version) | © SATTLER pendant
  • Schematic diagram: Surface-mounted luminaire. Cross-section of a linear luminaire viewed from one end, in this case the PALADIO. The luminaire is split down the middle; the light-emitting surface is marked in yellow at the bottom, and there is a pink rectangle in the upper part of the luminaire representing the internal power supply unit. A cable runs from the upper part of the luminaire (near the ceiling) into the ceiling. The luminaire is positioned directly against the ceiling and fixed there. A 0P is shown outside the image. | © SATTLER surface mounted
  • Schematic drawing: Recessed luminaire with frame. Cross-section of a linear luminaire viewed from one end, in this case the PALADIO. The luminaire is recessed into the ceiling. A frame protrudes at the bottom; springs are shown at the top, engaging with the upper side of the false ceiling. On the luminaire is a pink rectangle representing the power supply unit mounted on top. A cable extends from the power supply unit. A ‘0V’ is shown outside the image. | © SATTLER recessed with frame
  • Schematic drawing: Recessed luminaire without a bezel for concrete ceilings. Cross-section of a linear luminaire viewed from the end, in this case the PALADIO. The luminaire is recessed into the ceiling. The luminaire is flush with the visible ceiling surface. It is fitted into the concrete wall. In the upper part of the luminaire is a pink rectangle representing the power supply unit. A cable extends from the power supply unit. A VB is shown outside the image. | © SATTLER recessed without frame

  • Accessories

  • Connection box - white - 2002.00.00.00.00.12
  • Connection box - silver - 2002.00.00.00.00.60
  • Connection box - black - 2002.00.00.00.00.62
  • Connection box - champagne gold - 2002.00.00.00.00.65
  • Connection box - bronze - 2002.00.00.00.00.66
