CIRCOLO
I-VERSION | H 140
2600 | 2600 | 140
The CIRCOLO I is one of the large ring luminaires from SATTLER.
The basis of the luminaire is a ring-shaped aluminium profile, and the I version has an internal I-shaped diffuser that is flush with the aluminium profile. The luminaire shines in the centre and directly downwards. A CRI>90 is a matter of course for SATTLER luminaires.
It is available in diameters from 750 mm up to 3.5 m and with a profile height of 80 mm or 140 mm (ideal for multiple LED fittings), and as a pendant or surface-mounted luminaire.
It is supplied in one piece up to a Ø of 1.8 m, and in 2 or 3 parts for easy transport. Nevertheless, there is no impairment of homogeneous light distribution with the large diameters thanks to a sophisticated connection system.

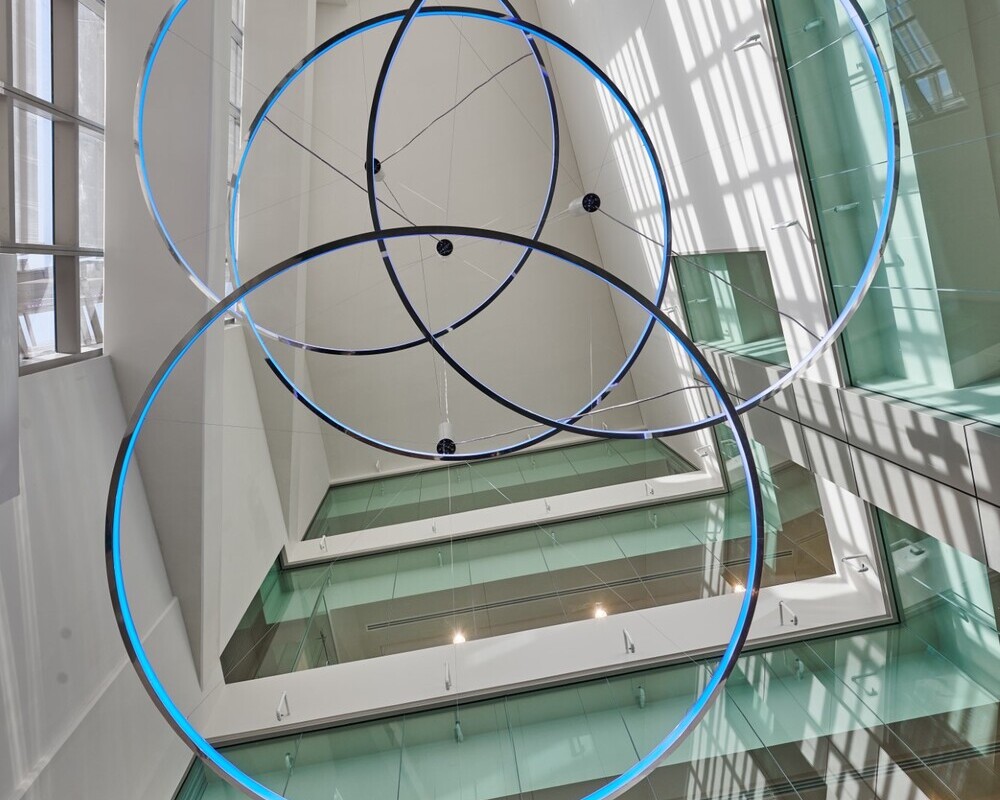

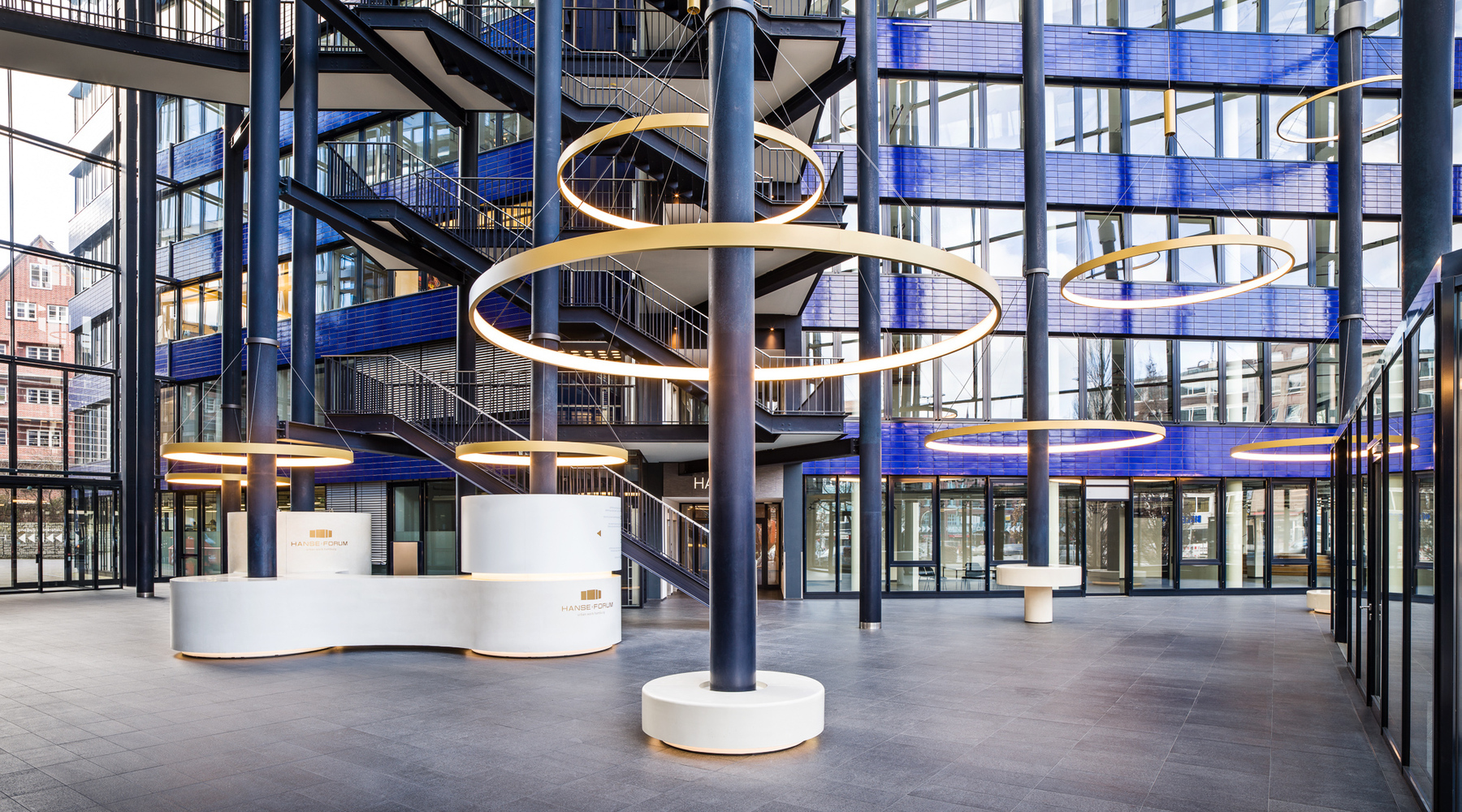

Ideal for large and high rooms, such as foyers, large stairwells or meeting rooms, also as a combination of different luminaire ring sizes.

LED technology: white, tunable & RGB (also in combination)

Special surfaces possible (like hand-polished or wood veneer)

CIRCOLO I version with internal diffuser
Product Images


-
Designer
- SATTLER
-
Product Type
- pendant luminaires
- Surface-mounted and recessed luminaires
Light Colours
- 4000 K: neutral-white
- 3000 K: warm-white
- 2700 K: extra warm-white
- 2700-6500 K: tunable white
- RGB:
- no indirect LED:
Dimming
- without dimmer (on/off)
- 0 - 10 V
- DALI
- CASAMBI
Colours
Power supply cable
Mounting version
-
Accessories
- Ceiling Cover Plate - white - 200.00.00.00.12
- CASAMBI wall-switch - black - 207.00.00.00.10
- CASAMBI wall-switch - white - 207.00.00.00.12
-
Data Sheet
-
2D Files Draft Symbols
-
3D Files
-
Light Calculation Files
