ELLIPSE

L-VERSION

1670 | 830 | 107

ELLIPSE - The large oval or elliptical LED ring luminaire from SATTLER is available in various high-quality surfaces. It is available as a pendant luminaire and as a surface-mounted luminaire.

ELLIPSE L version: Based on an aluminium profile bent into an ellipse with an internal L-shaped opal diffuser, which overlaps the underside of the aluminium profile and thus directs even more light downwards. CRI>90. Perfect in doctors' surgeries above reception counters, for foyers and meeting rooms, as well as in shops.

The ELLIPSE belongs to the SOFT series, here you will find other lights with shapes such as a rounded triangle or a rounded square.

ELLIPSE with internal I-shaped diffuser

ELLIPSE with internal I-shaped diffuser

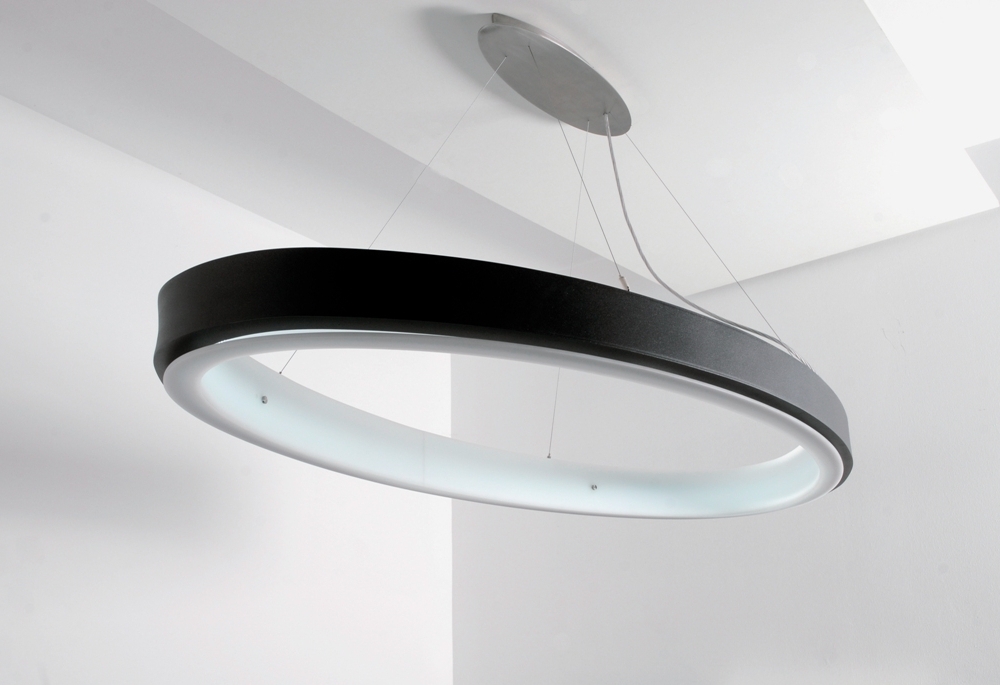

ELLIPSE with L-shaped diffuser

ELLIPSE with L-shaped diffuser

Corridor of the Paracelsus Clinic to the delivery room with green walls and many doors, large elliptical ring lights are attached to the ceiling through spacer sleeves, which light up in RGB green.

ELLIPSE as surface-mounted luminaire with ceiling spacer sleeves

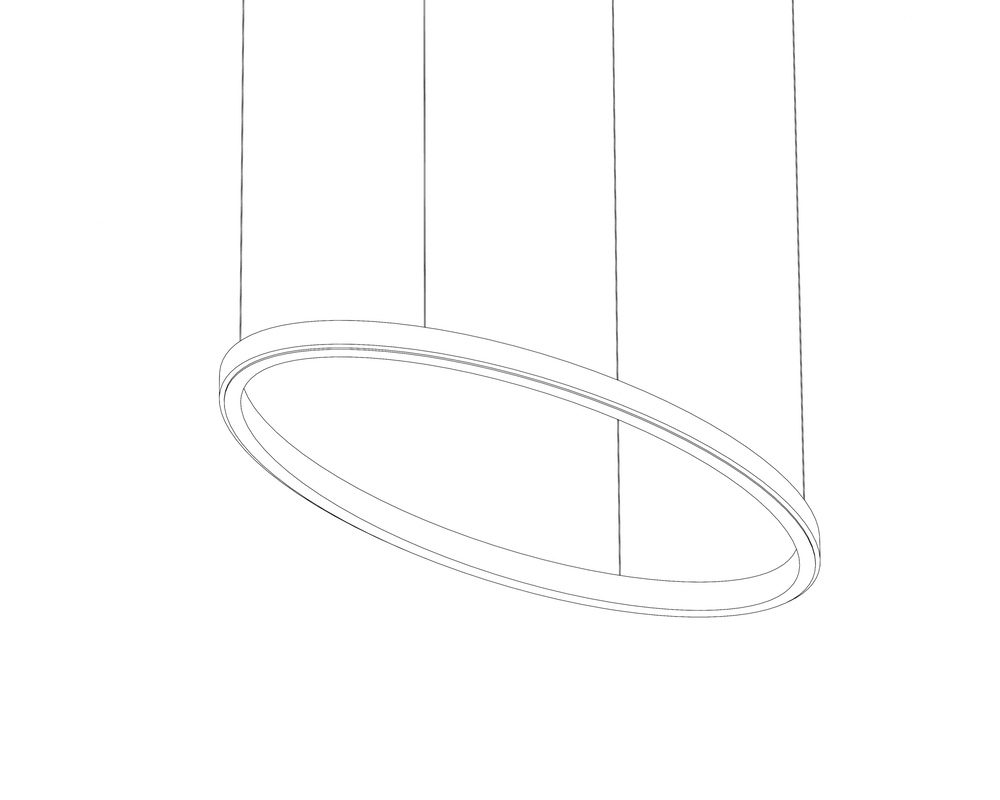

Line drawing of an elliptical pendant ring light with 4 suspensions. | © SATTLER

Schematic drawing of ELLIPSE L-version pendant light with 4 current-carrying cables

Shows large SOFT series pendant light shapes from SATTLER with white profile in front of wooden wall with the shapes with rounded corners: square = SOFT QUADRA (here with L-diffuser), all others with I-diffuser: rectangle (SOFT SQUARE), triangle (SOFT DELTA), ellipse.

SOFT series pendant light shapes - square, rectangle, triangle, ellipse

Product Images

Oval black ELLIPSE L pendant light above a white reception desk.
Reception desk in the shape of a pointed oval made of grey wood in front of a grey wooden wall, above which hangs a large white elliptical ELLIPSE L+A acoustic luminaire. | © SATTLER

Related Products

Corridor of the Paracelsus Clinic to the delivery room with green walls and many doors, large elliptical ring lights are attached to the ceiling through spacer sleeves, which light up in RGB green.

ELLIPSE

I-VERSION

1,670 mm

ELLIPSE

I-VERSION

2,400 mm

ELLIPSE

L-VERSION

1,670 mm

ELLIPSE

L-VERSION

2,400 mm

A light-coloured meeting room with a rectangular white table and white chairs in front of a TV screen. Two large elliptical white acoustic lights, SOFT ELLIPSE L+A, are suspended above the table. | © Eckhart Matthäus | www.em-foto.de

ELLIPSE

LIGHT + ACOUSTIC

1,670 mm

A light-coloured meeting room with a rectangular white table and white chairs in front of a TV screen. Two large elliptical white acoustic lights, SOFT ELLIPSE L+A, are suspended above the table. | © Eckhart Matthäus | www.em-foto.de

ELLIPSE

LIGHT + ACOUSTIC

2,400 mm

ELLIPSE

Half Shell

2,500 mm

Elliptical ring lights Doppio Ellipse in three sizes suspended from each other with a polished aluminium finish.

DOPPIO ELLIPSE

DIRECT / INDIRECT

2,750 mm

SLIM ELLIPSE

1,550 mm

Golden large-format ring lights, CIRCOLO I, suspended around the columns of the glazed atrium with blue walls of the Hanseforum Hamburg. | © gerrit meier

CIRCOLO

I-VERSION | H 140

2,300 mm

SOFT DELTA

I-VERSION

1,735 mm

SOFT QUADRA

I-Version

1,694 mm

SQUARE

I-Version

1,666 mm

  • Designer
  • SATTLER
  • Product Type
  • pendant luminaires
  • Surface-mounted and recessed luminaires
Light Colours
  • 4000 K: neutral-white
  • 3000 K: warm-white
  • 2700 K: extra warm-white
  • 2700-6500 K: tunable white
  • RGB:
  • no indirect LED:
Dimming
  • without dimmer (on/off)
  • 0 - 10 V
  • DALI
  • CASAMBI
Colours
  • white RAL9003 fine
  • Surface-mounted junction box from SATTLER in white fine structure white RAL9010 fine
  • black fine textured
  • anthracite fine
  • sand silver
  • bronze satinised
  • gold
  • brass
  • bronze
  • copper
  • aluminium polished
  • aluminium brushed
  • wood veneer
Power supply cable
  • silbernes geflochtenes Metallkabel silver
  • weißes geflochtenes Textilkabel white
  • graues geflochtenes Textilkabel grey
  • schwarzes geflochtenes Textilkabel black
  • geflochtenes Textilkabel orange orange
  • geflochtenes Textilkabel rot red
  • hellgrünes geflochtenes Textilkabel green
  • current-currying cables current-carrying cables
Mounting version
  • Accessories
  • Ceiling Cover Plate - white - 200.00.00.00.12
