CIRCOLO MINI

1240 | 1240 | 39

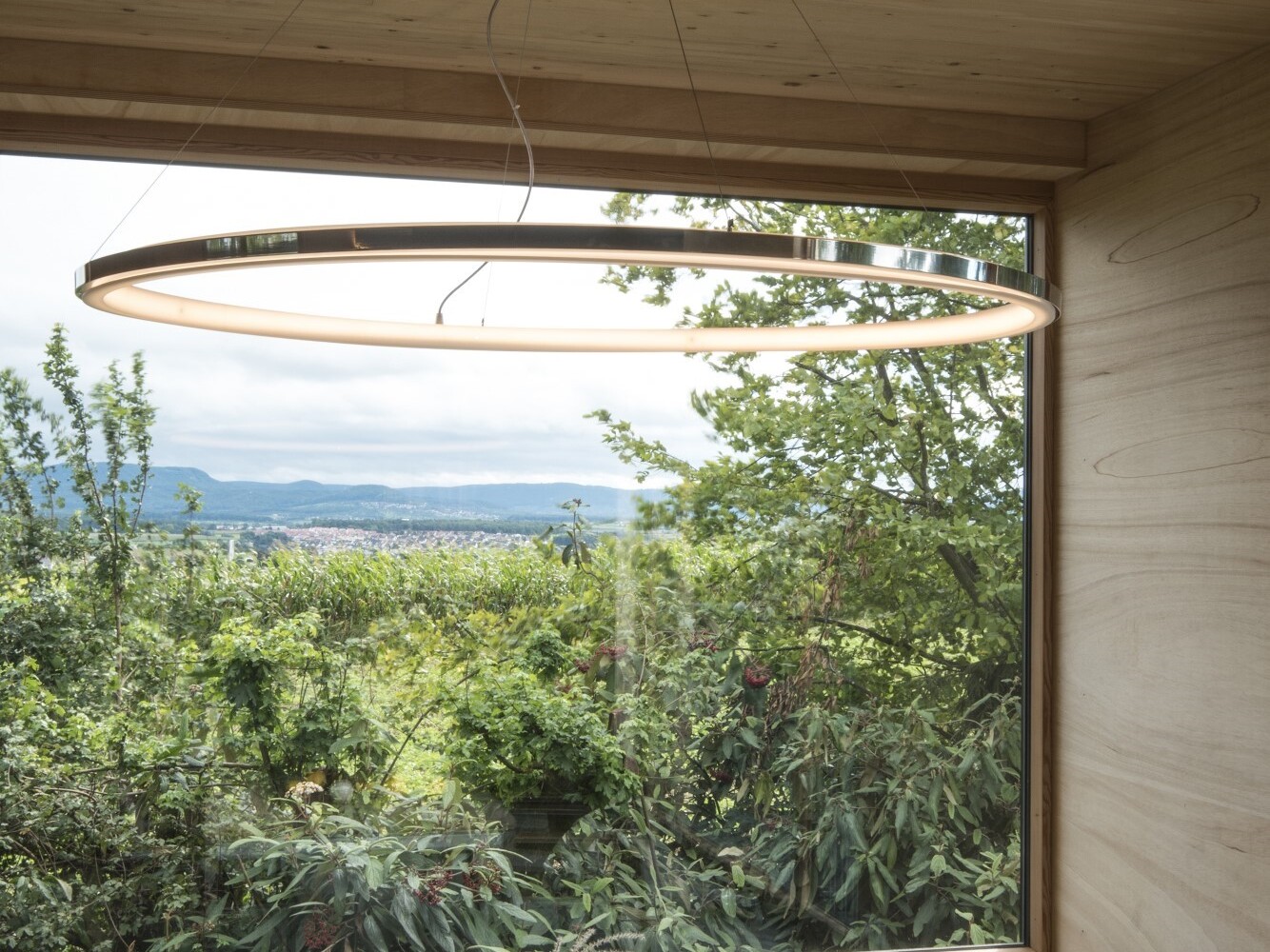

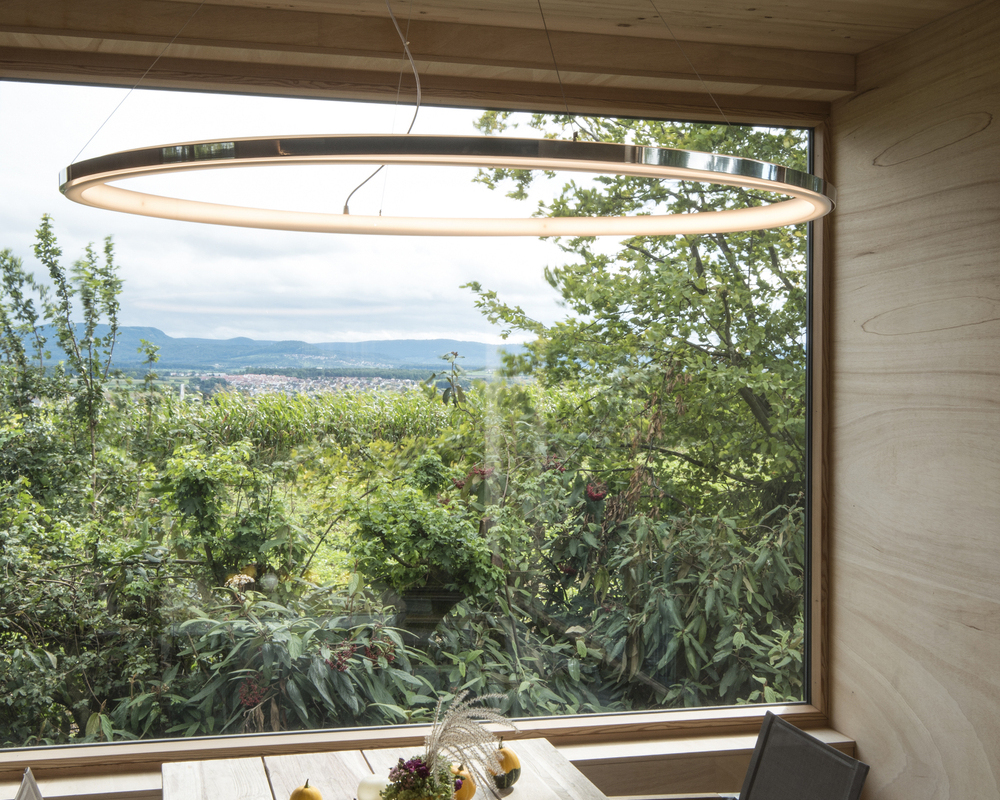

CIRCOLO MINI is the small version of the CIRCOLO with an L-shaped diffuser. The SATTLER ring luminaire with an L-shaped diffuser that directs the light both inwards and even more directly downwards. It is available as a catalogue luminaire in 4 sizes with a diameter of 900 mm - 1900 mm. The luminaire has been used by our customers in living rooms, dining rooms, lounges and meeting rooms. ‘The circle as a symbol of ideal order, with its clear aesthetics and formal language, has an inviting and calming effect on all of us. This harmony, captured and realised in the clear design of luminous rings, is the vision for our CIRCOLO MINI and SLIM luminaire series.’ Ring-shaped aluminium profile, internal opal acrylic glass ring (L-shaped)

Product Images

Related Products

SLIM

DIRECT

900 mm

View from below to the ceiling of an exposed concrete building, 3 CIRCOLO ring luminaires in polished aluminium hang in the middle of the two-storey high room, on both sides the room narrows by one storey.

CIRCOLO

L-VERSION | H 107

1,320 mm

CIRCOLO MINI

900 mm

CIRCOLO MINI

1,550 mm

CIRCOLO MINI

1,900 mm

Golden large-format ring lights, CIRCOLO I, suspended around the columns of the glazed atrium with blue walls of the Hanseforum Hamburg.

CIRCOLO

I-VERSION | H 140

1,320 mm

View from below of three large ring luminaires radiating outwards, CIRCOLO INVERSE with a diameter of 1.32 metres, suspended one below the other in a glass tower.

CIRCOLO

INVERSE

1,320 mm

Landscape: High white entrance hall of the Thorax Clinic with a view of the reception desk, above which two round luminaires with acoustic foil are suspended to provide privacy, in the room columns and 2 large black ring luminaires radiating inwards (CIRCOLO I) and 2 ring luminaires (CIRCOLO INVERSE) suspended in the room radiating outwards.

CIRCOLO

LIGHT + ACOUSTIC

1,320 mm

Three filigree SLIM DIRECT LED ring luminaires by SATTLER in brushed aluminium above a kitchen counter, providing direct lighting for a modern private kitchen.

SLIM

DIRECT

380 mm

SLIM

IN

900 mm

SLIM

INDIRECT

1,240 mm

SLIM

OUT

1,240 mm

SLIM TABLE. A round table lamp on a grey table, with green plants visible in the foreground. The table lamp consists of a ring that emits light inwards and stands upright on the table, with a small base on the side to stabilise it.

SLIM TABLE

380 mm

SLIM WALL

900 mm

  • Designer

  • SATTLER

  • Product Type

  • pendant luminaires
  • Surface-mounted and recessed luminaires

Light Colours

  • 3000 K: warm-white
  • 4000 K: neutral-white
  • 2700 K: extra warm-white
  • 2700-6500 K: tunable white
  • RGB:
  • no indirect LED:

Dimming

  • without dimmer (on/off)
  • 0 - 10 V
  • DALI
  • CASAMBI

Colours

  • white RAL9003 fine
  • Surface-mounted junction box from SATTLER in white fine structure white RAL9010 fine
  • black fine textured
  • anthracite fine
  • sand silver
  • bronze satinised
  • gold
  • brass
  • bronze
  • copper
  • aluminium polished
  • aluminium brushed

Power supply cable

  • current-currying cables current-carrying cables
  • silbernes geflochtenes Metallkabel silver
  • weißes geflochtenes Textilkabel white
  • graues geflochtenes Textilkabel grey
  • schwarzes geflochtenes Textilkabel black
  • geflochtenes Textilkabel orange orange
  • geflochtenes Textilkabel rot red
  • hellgrünes geflochtenes Textilkabel green

Mounting version

  • Schematic drawing showing a luminaire suspended from 4-point cable suspensions & a pink supply cable leading away towards the ceiling. The cable runs into the suspended ceiling to the external power supply unit, shown as a pink rectangle. An ‘A’ is shown outside the image. | © SATTLER A – Steel cable suspension, supply cable & external technical unit in the false ceiling
  • Schematic diagram showing a light fixture suspended by four-point cable suspensions, with a pink supply cable running away from the ceiling. The cable leads to a canopy fixed to the ceiling, which houses the power supply unit. A ‘B’ is shown outside the image. | © SATTLER B – Steel cable suspension, power supply cable & external technical unit in ceiling canopy.
  • Schematic diagram showing a light fixture with steel cables (shown in grey) and a pink supply cable leading to a round ceiling canopy. The power supply unit (shown as a pink rectangle) is built into the ceiling canopy. An E is located outside the image.
  • Schematic diagram showing a light with four live cables (shown in pink) leading to a round ceiling canopy mounted directly on the ceiling. The power supply unit is built into the ceiling canopy (shown as a pink rectangle). There is an ‘F’ outside the image.
  • Schematic diagram showing a luminaire suspended by four-point cable suspensions (live steel cables, shown in pink) running straight upwards into the ceiling. Small ceiling recesses are indicated by small squares in the ceiling. An ‘R’ is shown outside the image. | © SATTLER
  • Schematic diagram showing a light fixture with steel cables (shown in grey) and a pink supply cable converging at a cylindrical canopy (close to the light). From there, a supply cable and steel cable run to a small transfer canopy on the ceiling. An ‘S’ is shown outside the image.
  • Schematic diagram showing a luminaire connected via live steel cables (shown in pink) to a cylindrical canopy (close to the luminaire). From there, a supply cable and steel cable run to a small transfer canopy on the ceiling. A letter T is shown outside the image.
  • Schematic diagram showing a light fitting with four small ceiling spacers extending straight upwards towards the ceiling (depicted as a hollow ceiling with two horizontal lines). A live cable runs from the light fitting into the false ceiling to a technical unit (shown as a pink square). A ‘G’ is shown outside the image. | © SATTLER

  • Accessories

  • Ceiling Cover Plate - white - 200.00.00.00.12
  • CASAMBI wall-switch - black - 207.00.00.00.10
  • CASAMBI wall-switch - white - 207.00.00.00.12
